Electrical components: all models starting with E38

The proposed lexicon contains electrical components, which are shown on the electrical diagrams of diagnostics, with the corresponding symbols of these components.

The symbols correspond to the symbols on the electrical diagrams. Example: "A210" for the control unit "Rear door module on the passenger side".

The proposed lexicon contains about 2000 symbols.



This lexicon contains the following information:



- symbol (in alphabetical order)

- node

- information indication of the node description in SI System Description (SBT).

In the absence of a detailed description of the node in the column "Information" there is a brief description of the node.

- Constructive Group: functional group of the node.



For each designation and node, a functional group is indicated (only the main groups).

A list of functional groups is available in SI System Description (SBT) "Abbreviations".





  Constructive groups         Name

01

Technical literature



11

Engine

12

Electric equipment of the engine

13

System for preparing and adjusting the composition of the working mixture

16

The system supplying fuel

17

system cooling

18

System release exhaust

21

Clutch

22

Engine and gearbox mount

23

Mechanical boxes gear

24

Automatic boxes transmissions

25

Switching

26

cardan shaft

27

Transfer box

31

Front axle

32

Steering and wheel alignment

33

Rear axle

34

The brakes

35

Pedal control

36

Wheels and tires

37

Special suspension systems

41

Body

51

Body equipment

52

seat

54

Sliding sunroof and convertible top

61

General vehicle electrical equipment

62

Control devices

63

Lighting fixtures

64

The system of heating and air-conditioning

65

Audio system, navigation system, information systems

66

Remote systems, cruise control, remote control

67

Electric drives

71

Original accessories (engine and chassis)

72

Original accessories ( bodywork )

80

Accessories

82

Special accessories

83

Technical and supporting materials

84

Communication systems

86

Trailer

91

Individual equipment

97

Car conservation





** Typos, changes, and technical errors are possible.

Status: November 2005



- Series: a list of series in the electrical circuits of which there is this symbol.



Note: For the latest information, refer to the BMW diagnostic system.



This lexicon contains the legend of the nodes, which are shown in the following electrical diagrams:



  • DVD with electrical circuits "BMW V 5.0", as of 03/2005 (WDS: Wiring Diagram System).
    This DVD contains circuit diagrams for diagnosing BMW vehicles.
  • Circuit DVD "MINI V 3.0", dated 03/2005 (WDS: Wiring Diagram System).
    This DVD contains wiring diagrams for diagnosing MINI vehicles.

This vocabulary contains only the conventions used in the electrical circuits on both of these DVDs. Symbols that are found only in the lists "Information on nodes and signals" are absent in this lexicon.



Note: Conventional Series Conventions.



For technical reasons, some series are combined as follows:

  • E60 and E61
  • E63 and E64
  • E65 and E66
  • E83 and E85
  • E87 and E90
  • R50, R52 and R53

Therefore, it is possible that the symbol corresponds to the series, although the node on this series is missing.



List of conventions in alphabetical order

On the WDS-DVD (Wiring Diagram System), the symbols are listed in the "Information on nodes and signals" list in alphabetical order.



The list of systems by groups in the diagnosis



Note: For technical reasons, the windows shown below are not translated.



In the list of "Sites" windows available on the WDS-DVD, symbols and nodes are listed in alphabetical order.

For technical reasons, the windows shown below cannot be translated into the appropriate language.





The texts in these windows are explained in the accompanying texts.

The figure shows a list of nodes and signals on the WDS-DVD for E90

(WDS-DVD: Wiring Diagram System, i.e. DVD with electrical circuits for BMW diagnostics).

The "Nodes" section is shown in detail.



Note: "D" for "Diagnostic Interfaces".

The figure shows only the groups for the E90. for vehicles of other series, other groups may be shown. For example, group “D” for the following series: E39 and E53. For this group, the proposed lexicon has its own section.



Note: "P" for "Test Instruments".

Group "P" is available for the E52 series.

For this group, the proposed lexicon has its own section.



Note: "V" for "Semiconductor devices", "Diodes".

Group "V" is available for the following series: E38, E39, E46 and R50.

For this group, the proposed lexicon has its own section.

Designation

Explanation

Designation

Explanation



1

"<< Series "

2

Print "



3

The End "

4

Running "



5

Selected Series

6

Help "



7

The car as a whole "

8

"Information on nodes and signals"



9

Nodes "

10

"A Control Units Modules "



11

"B Sensors electrical converters "

12

Lighting, electric heating devices"



13

"F Fuses "

14

"G Power gas generators "



15

Acoustic and visual warning equipment"

16

Nodes from BMW suppliers "



17

"K Relay "

18

"L Windings "



19

"M Electric motors drives "

20

Amplifiers, regulators, control units"



21

"R Resistances potentiometers "

22

"S Switches Buttons Keys "



23

"T Ignition Coils "

24

"U Radio telephones suppressing filters "



25

Antennas screens "

26

"Y Electromechanical units "



27

Blocking circuits, suppression filters"

28

Signal "



29

"Plug-in, scallop and solder joints"

30

Service functions "



31

Entering a concept to search "

32

Search "



33

New "

34

Title electrical circuit







 Symbols are summarized in alphabetical order in the following groups:

A control units, modules



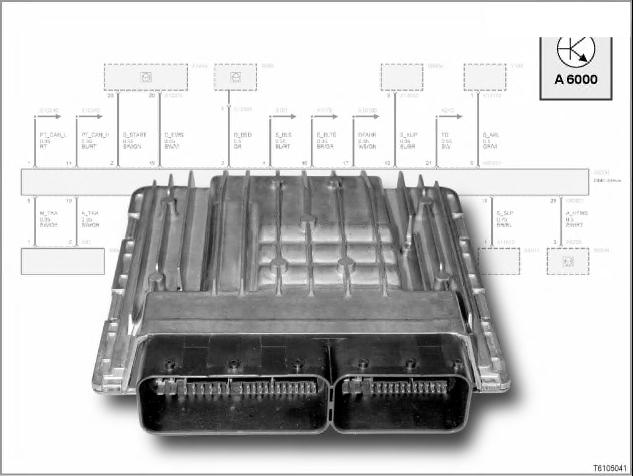

The illustration shows the DME control unit "A6000" for the N52 engine on the E90. (DME: digital electronic engine management system). The background is the electrical circuit for this symbol.

Note: Control units in the list of abbreviations



Many control units are already listed in SBT (SI System Description) “Abbreviations”.

Section "Abbreviations of the names of control units in diagnostics and programming."

These control units can be encoded and programmed.

These control units are shown in brief tests of the BMW diagnostic system (depending on the vehicle equipment).



Control units are often indicated by abbreviations. Moreover, in most cases, the abbreviation also refers to the system that the control unit controls (for example, the DSC control unit controls the dynamic stability control system).



Some abbreviations are borrowed from English. Some come from German meanings. Long forms are predominantly German names. However, these may also be English or marketing names.



This section contains those control units that are indicated by abbreviations in the diagnostic and programming programs.

Note: Updated version with legend



In the previous version, the symbols of the control units were also given. Symbols are shown on the wiring diagrams in the BMW diagnostic system: symbols are used as wildcards for unit names.



Note: Previous control unit reductions.



Since the start of mass production of the E65 (on-board network 2000), the names of the control units have been unified. There were differences in names with control units of earlier series. For technical reasons, these control units have not been renamed.



This is because these control units are shown in the BMW test brief of the BMW diagnostic system.



In the following table, previous abbreviations are given in the column “Value” opposite to the corresponding abbreviation currently used. For example, next to SVS (voice control system), the previous abbreviation SES (voice input system) is also indicated.



Currently, the following abbreviations are used for control units:

Abbreviation

conditional designation

Value

Installed on ...

KoGr

ABS

A7

Anti - lock braking system

R50, R52, R53, R56

34

ACC

A144, A144a

Active Cruise Control (" ACC " stands for Active Cruise Control )

E38, E60, E61, E63, E64, E65, E66, E90, E91, E92, E93

65

ACSM

A12a

Block management ACSM ( "ACSM" - reduction of the "Advanced Crash Safety Module")

E60, E61, E63, E64, E70, E85, E86, E93

72

Ahl

A214

Adaptive cornering light

E46 / 2, E46 / C, E53, E60, E61, E63, E64, E65, E66, E70, E83, E85, E86, E90, E91, E92, E93

63

Ahm

A6

Trailer electrical connection module

E60, E61, E63, E64, E65, E66, E70, E87, E90, E91, E92, E93

86

AL

A467

The active steering control

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93

32

ALBBF

A854

Active front passenger seat back width adjustment

E60, E61

52, 61

ALBFA

A853

Active driver seat back width adjustment

E60, E61

52, 61

Amp

A18

Amplifier

E60, E61, E63, E64, E65, E66, E70, E83, E87, E90, E91, E92, E93, R56

65, 84

ANT

N30

Antenna tuner

E65, E66, E83

65, 84

ARS

A148, A148a

Active Roll Stability (Trade Name: Dynamic Drive )

E60, E61, E63, E64, E65, E66, E70

37

ASA

A208

Folding exterior mirrors

E83

51, 61

ASC

A52

Automatic stability control system

E38, E39, E46

34

ASC + T

A7

Automatic stability and traction control system

R50, R52, R53, R56

34

ASK

N38

Audio controller

E65, E66

65

BM

A196

On-board monitor

E38, E39, E46, E52, E53

62, 65

Bzm

A167

Control Center in the center console

E65, E66

61

Bzmf

A216

Control center in the rear middle armrest

E65, E66

61

CA

A215, A215a

Comfort Access System (short for " Comfort Access ")

E60, E61, E63, E64, E65, E66, E70, E87, E90, E91, E92, E93, R56

65

Cas

A149, A149a

The system of access to vehicle

E60, E61, E63, E64, E65, E66, E70, E87, E90, E91, E92, E93, R56

65

CCC

N38a

Car communication computer

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCC-A

Virtual ECU in CCC

Applied program of CCC

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCC-ANT

Virtual ECU in CCC

CCC Antenna Tuner

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCC-ASK

Virtual ECU in CCC

CCC Audio Controller

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCC-BO

Virtual ECU in CCC

CCC Operating Environment

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCC-GW

Virtual ECU in CCC

Fieldbus converter CCC

E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56

84

CCM

A4

Auto Diagnostic System Module

E38

62, 65

CD

A165

display control

E65, E66

65

CD-BO

Virtual computer in CD

Display Control ( user screen )

E65, E66

65

CD-GW

Virtual computer in CD

Display Control ( firewall converter )

E65, E66

65

* = information with the next updated version

Typos, factual errors, and technical changes are possible.

As of: January 2007

The proposed list contains all BMW control units with the designation "A ..." (regardless of whether these control units are shown in short tests or in programming or not).



Note: Abbreviations for control unit names in brief tests.



In the brief tests of the BMW diagnostic system, as well as in Progman, all control units are shown as abbreviations. These abbreviations are shown in the following table in the "Information" column.

Each control unit is shown in a short test as an abbreviation.

Diagnostics of control units that do not have their own reduction is carried out by the master. These control units may have a self-diagnosis, but transmit possible error messages to the appropriate master. The BMW diagnostic system reads the records of these faults in the corresponding master.



Note: Some conventions are for technical reasons only.



Some symbols are not introduced for nodes, but for other symbols on the circuit diagram. For example, “A30” for “terminal 30” in the “Radio / Stereo” circuitry E52. Or the symbol "N52" is nothing more than a type of engine.

Such conventions make up half of this vocabulary.



Note: Cross references between conventions



Some conventions and nodes have the same functions, or relate to similar systems. However, for technical reasons, "hypertext links", that is, electronic links inside this lexicon are impossible.



To show the interconnection between several nodes and for that. In order not to bother the reader with frequent repetitions of similar texts, cross-references are marked as follows:



"-> see A123" means: The same information is valid for this symbol as for node A123.

"-> A123" at the end of the information points to another node from this system.



A: Control units, modules (more details...)

B Sensors, electrical converters



D Diagnostic Interfaces



E Lighting, electric heating devices



F Fuses



G Power supply, gas generators



H Acoustic and visual alerts



I Parts from BMW suppliers



K Relay



L Winding



M Electric motors, drives



N Amplifiers, regulators, control units



P Control devices



R Resistance potentiometers



S Switches, Buttons, Keys



T Ignition Coils



U Cordless Telephone Phones



V Semiconductor devices, diodes



W Antennas, screens



X Connectors



There are no connectors in this lexicon.



Y Electromechanical units



Z Fence circuits, suppression filters.
