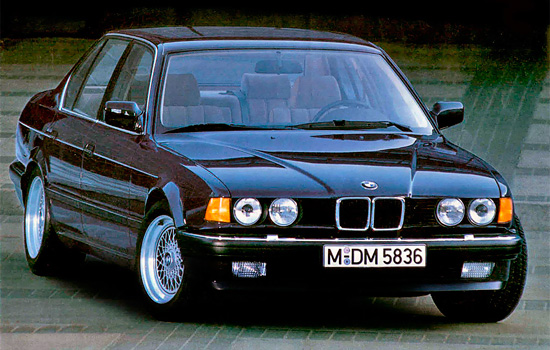

REPAIR MANUALS FOR BMW 7 SERIES E32/ EWD
A collection of repair and maintenance manuals for the BMW 7 Series E32 with complete electrical diagrams (EWD). Includes step-by-step instructions, diagnostic data, repair of components and systems, as well as detailed wiring diagrams for accurate troubleshooting.
(Engines: M30, M60, M70)
Wiring diagrams BMW 3-series (E30, E36, E46, Z3), 5-series (E28, E34, E39), 6-series (E24), 7-series (E23, E32, E38), 8- SERIES (E31)
Electrical Wiring Diagrams – BMW E32 88-94
BMW 7 Series (E32) 1988 – 1994 Workshop Manual
Instructions for use, maintenance and repair of the BMW 7-Series E23 bodies in 1977-1986 model years and E32 1986-1994 model years with gasoline engines Download
Repair manual BMW 7 Series 1986-2001 model years with petrol and diesel engines Download
Service Manual BMW 7 Series (E32) 1988-1994 Download
General – BMW E32 88-94 Download
Engine General (M30, M60, M70) – BMW E32 88-94 Download
Maintenance – BMW E32 88-94 Download
Engine Removal and Installation (M30, M60, M70) – BMW E32 88-94 Download
Cylinder Head Removal and Installation – BMW E32 88-94 Download
Cylinder Head and Valvetrain – BMW E32 88-94 Download
Camshaft Timing Chain – BMW E32 88-94 Download
Lubrication System – BMW E32 88-94 Download
Ignition System – BMW E32 88-94 Download
Battery, Starter, Alternator – BMW E32 88-94 Download
Fuel Injection – BMW E32 88-94 Download
Fuel Tank and Fuel Pump – BMW E32 88-94 Download
Radiator and Cooling System – BMW E32 88-94 Download
Exhaust System – BMW E32 88-94 Download
Transmission General – BMW E32 88-94 Download
Clutch – BMW E32 88-94 Download
Manual Transmission – BMW E32 88-94 Download
Automatic Transmission – BMW E32 88-94 Download
Gearshift Linkage – BMW E32 88-94 Download
Driveshaft – BMW E32 88-94 Download
Brakes – BMW E32 88-94 Download
Front Suspension – BMW E32 88-94 Download
Steering and Wheel Alignment – BMW E32 88-94 Download
Rear Suspension – BMW E32 88-94 Download
Final Drive – BMW E32 88-94 Download
Brake – BMW E32 88-94 Download
Exterior Trim, Bumpers – BMW E32 88-94 Download
Door Windows – BMW E32 88-94 Download
Interior Trim – BMW E32 88-94 Download
Central Locking – BMW E32 88-94 Download
Seats – BMW E32 88-94 Download
Sunroof – BMW E32 88-94 Download
Electrical Component Locations – BMW E32 88-94 Download
Wipers and Washers – BMW E32 88-94 Download
Switches and Electrical Accessories – BMW E32 88-94 Download
Instruments – BMW E32 88-94 Download
Exterior Lighting – BMW E32 88-94 Download
Heating and Air Conditioning – BMW E32 88-94 Download
Radio – BMW E32 88-94 Download
Electrical System General – BMW E32 88-94 Download
Seat Belts – BMW E32 88-94 Download
Airbag System (SRS) – BMW E32 88-94 Download
Electrical Wiring Diagrams – BMW E32 88-94 Download
Typical Overall Issues for the BMW 7 Series E32
1. Engine & Cooling System Issues
-
Cooling System Overhaul Necessity: The plastic and rubber components of the cooling system (radiator, expansion tank, hoses, thermostat housing) become brittle and weak over time. Failure to regularly replace these parts leads to overheating, which can damage the engine, especially the aluminum heads.
-
Oil Leaks (M30, M60, M70): All engine variants commonly suffer from oil leaks. The most typical sources include:
-
Valve Cover Gasket (VCG): Common on M30 and M70.
-
Oil Pan Gasket: Especially difficult to replace on V8 and V12 models.
-
Timing Cover Gaskets.
-
-
M70 (V12) Specific Issues: Since the M70 essentially combines two M30 six-cylinder engines, maintenance is complex and expensive. Common issues include:
-
Dual Idle Control Valves (ICVs): Prone to sticking, causing rough idle.
-
Vacuum Leaks: The extensive vacuum system can develop leaks, affecting engine performance.
-
2. Suspension, Steering, and Brakes
-
Steering Box/Steering Gear Slop: The E32 uses a recirculating ball steering box, which can develop play or "slop" over time, leading to vague or imprecise steering feel. Adjustment or replacement is often necessary.
-
Suspension Bushings and Mounts: All rubber bushings (control arms, trailing arms, sway bar links) are sacrificial items and degrade with age, causing clunking sounds, instability, and poor handling.
-
Self-Leveling Suspension (SLS): Found on some high-end models (especially the 750iL), this hydraulic system uses mineral oil (Pentosin). Leaks in the system, failure of the hydraulic spheres (accumulators), or pump issues are common and expensive to fix.
3. Drivetrain
-
Automatic Transmission (ZF): The ZF automatic transmissions used (e.g., 4HP22/24) are generally robust but require regular fluid and filter changes. Neglect leads to hard shifts or eventual failure. The kickdown cable adjustment is also critical for shift quality.
-
Driveshaft Flex Disc (Guibo) and Center Support Bearing: These rubber components perish with age and contribute to vibration and clunking during acceleration or shifting.
4. Body and Chassis
-
Rust (Wheel Arches and Jack Points): Rust is a significant issue, particularly around the rear wheel arches, rocker panels (sills), and the factory jacking points, especially in regions with road salt.
-
Sunroof Drain Clogs: Clogged drains can cause water to back up and leak into the interior, potentially damaging carpeting and interior electronics.
-
Door and Trunk Seals: The rubber seals harden over time, leading to wind noise and water leaks into the cabin or trunk.
