BMW X5 E70 Fuses and Relay
Content
1 Bmw e70 fuse and relay box
2 Blocks with fuses in the trunk of a bmw e70
2.1 Main fuse box in the installation compartment
2.2 Fuses on the battery cover
3 Blocks with fuses and relays under the hood х5 е70
4 Additional information
5 Maintenance instructions

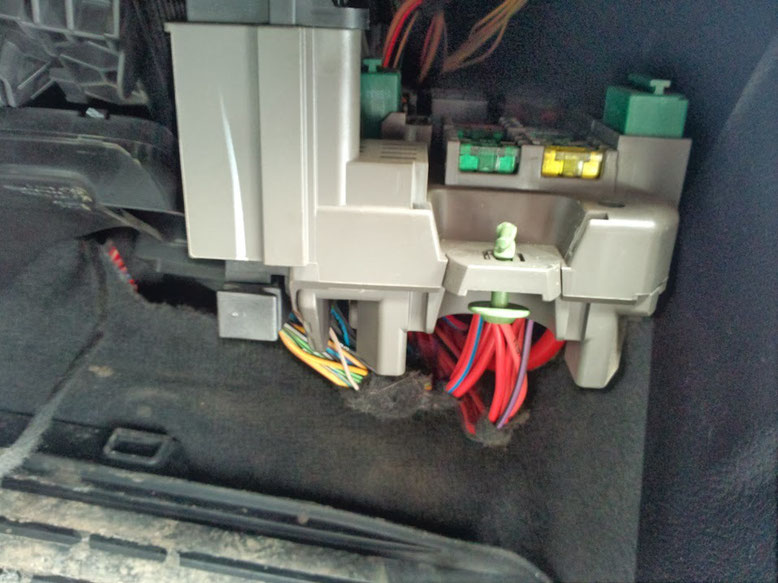

Bmw e70 fuse and relay box

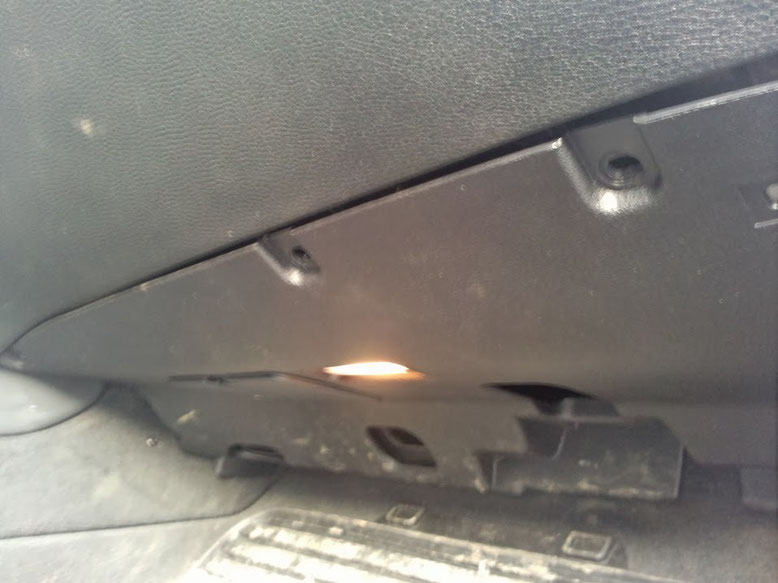

It is located on the right side, at the feet of the front passenger. We go down under the glove compartment and unscrew the three screws.

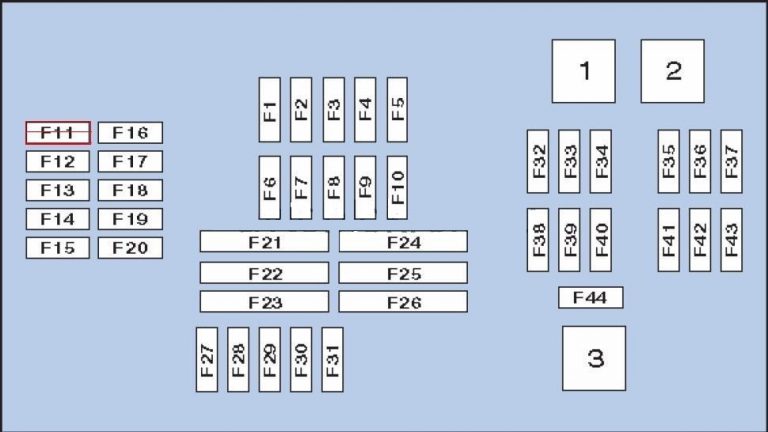

General block diagram with fuses and relays
|
1 |
Active suspension compressor relay |
|
2 |
The relay of a cleaner rear glass |
|
3 |
Windshield wiper motor relay |
|
F1 |
(20A) |
|
F2 |
(10A) Glove box lock actuator |
|
F3 |
(7.5A) |
|
F4 |
(10A) ECM |
|
F5 |
(10A) |
|
F6 |
(10A) |
|
F7 |
(5A) |
|
F8 |
(7.5A) |
|
F9 |
(15A) Sound signals |
|
F10 |
(5A) |
|
F11 |
(20A) |
|
F12 |
(10A) Steering column control module |
|
F13 |
(15A) Transmission control module (ECM) |
|
F14 |
(10A) |
|
F15 |
(10A) selector CAT |
|
F16 |
(7.5A) Power window switch |
|
F17 |
(7.5A) |
|
F18 |
(7.5A) |
|
F19 |
(5A) |
|
F20 |
- |
|
F21 |
(30A) Heated rear window |
|
F22 |
- |
|
F23 |
(40A) |
|
F24 |
(40A) Power Steering Control |
|
F25 |
(30A) - |
|
F26 |
(30A) Headlight washer pump |
|
F27 |
(15A) Central locking |
|
F28 |
(15A) Central locking |
|
F29 |
(40A) Electric rear power window |
|
F30 |
(30A) Central locking |
|
F31 |
(40A) Electric rear power window |
|
F32 |
(40A) Active suspension compressor |
|
F33 |
(30A) |
|
F34 |
(30A) |
|
F35 |
(30A) Engine management |
|
F36 |
(30A) Engine management |
|
F37 |
(30A) Rear window wiper motor |
|
F38 |
(30A) |
|
F39 |
(40A) |
|
F40 |
(30A) ABS control module |
|
F41 |
(7.5A) |
|
F42 |
(30A) Engine management |
|
F43 |
(30A) Engine management |
|
F44 |
(30A) Windshield wiper motor |
Blocks with fuses in the trunk of a bmw e70

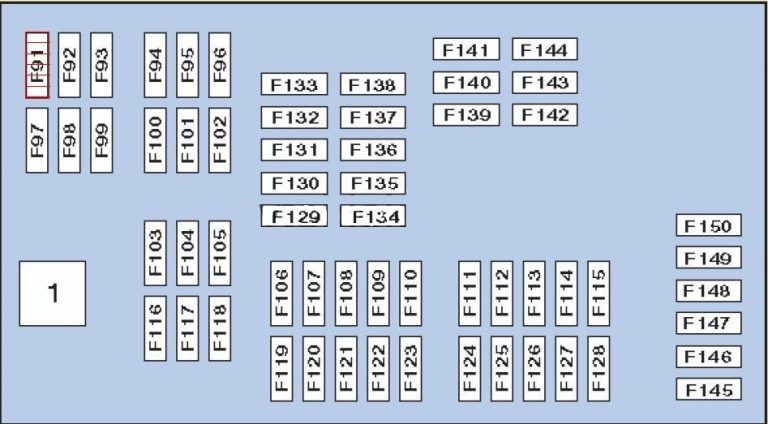

Main fuse box in the installation compartment
It is located on the right side under the skin and will look something like this.
|
1 |
Circuit cut-off relay (Terminal 30 G relay ) |
|
F91 |
(30A / 40A) |
|
F92 |
(25A) Transfer case control module |
|
F93 |
(40A) |
|
F94 |
(30A) parking brake control module |
|
F95 |
(30A / 40A) |
|
F96 |
(40A) |
|
F97 |
(20A) Cigarette lighter |
|
F98 |
(15A / 20A) |
|
F99 |
(40A) Tailgate open / close control module |
|
F100 |
(20A) |
|
F101 |
(30A) |
|
F102 |
(30A) |
|
F103 |
(30A) Audio system output amplifier |
|
F104 |
- |
|
F105 |
(30A) |
|
F106 |
(7.5 A) |
|
F107 |
(10A) |
|
F108 |
(5A) |
|
F109 |
(10A) The receiver navigation system |
|
F110 |
(7.5 A) |
|
F111 |
(20A) Cigarette lighter fuse ( front ) |
|
F112 |
(5A) |
|
F113 |
(20A) Cigarette lighter fuse (center armrest) |
|
F114 |
(5A) |
|
F115 |
- |
|
F116 |
(20A) Trailer electrical connector |
|
F117 |
(20A) |
|
F118 |
(20A) - |
|
F119 |
(5A) Multimedia control module |
|
F120 |
(5A) Active suspension control module |
|
F121 |
(5A) Tailgate open / close control module |
|
F122 |
- |
|
F123 |
- |
|
F124 |
(5A) Instrument panel fuse / relay box |
|
F125 |
(5A) Transfer case control module |
|
F126 |
(5A) |
|
F127 |
- |
|
F128 |
- |
|
F129 |
(5A) |
|
F130 |
- |
|
F131 |
(5A) |
|
F132 |
(7.5 A) |
|
F133 |
- |
|
F134 |
(5A) Steering column control module |
|
F135 |
(20A) Rear door open / close control module |
|
F136 |
(5A) |
|
F137 |
(5A) System navigation |
|
F138 |
- |
|
F139 |
(20A) |
|
F140 |
(20A) Left front seat heater control module |
|
F141 |
(20A) Right front seat heater control module |
|
F142 |
(20A) Multimedia control module |
|
F143 |
(25A) Trailer control module |
|
F144 |
(5A) Trailer control module |
|
F145 |
(10A) Assistant door closing motor (front right) |
|
F146 |
(10A) Auxiliary door closing motor (front left) |
|
F147 |
(10A) Assistant door closing motor (rear left) |
|
F148 |
(10A) Assistant door closing motor (rear right) |
|
F149 |
(5A) Seat multifunction switch (front left) |
|
F150 |
(5A) Seat multifunction switch (front right) |
Some relays can be located on the side, such as the unloading relay for terminal 15 K9.

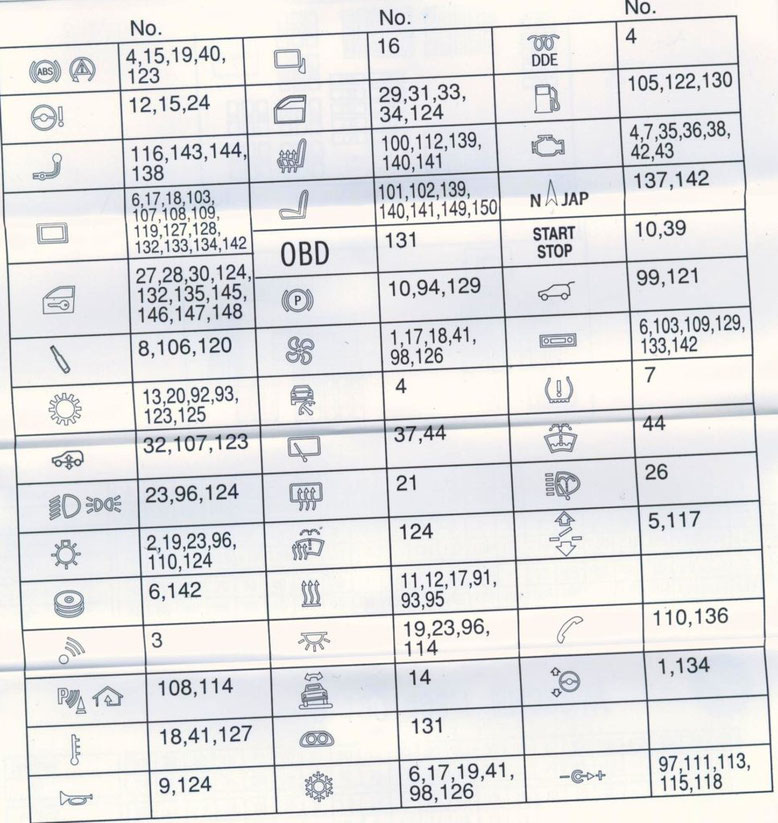

The latest information on the location of fuses and relays for your vehicle should be located next to this unit in a brochure form.
Several fuses are responsible for the cigarette lighter: 97, 111, 113, 115, 118.

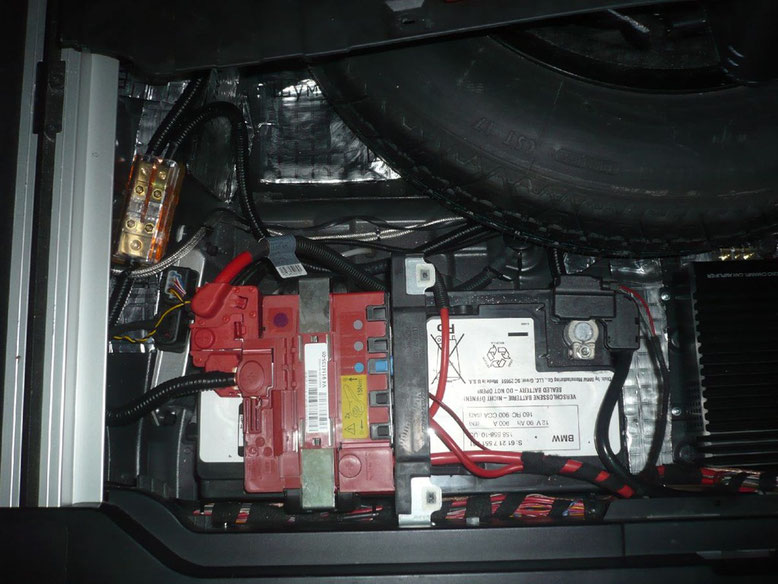

Fuses on the battery cover
The plastic battery cover contains high power fuses.
F171 (100A)
F172 (100A)
F173 (250A) Instrument panel fuse / relay box
F174 -
F175 -
F176 (80A) Relay valve lift control unit
F177 -
Blocks with fuses and relays under the hood x5 e70
On the right side, near the wipers, there is a relay and fuse box, covered with a plastic cover.
The number of fuses depends on the equipment and year of manufacture of your bmw.
Description
1 Electronic engine control unit
2 Relay for valve lift control
F1 (40A) Relay for valve lift control
