BMW 3 E30 ERROR CODES

Self-diagnosis and error codes

Model Year.

Body Style.

Model.

Processor type.

EPROM type.

9/84 — 9/87

E30

325e/es

1802

2732A

88

E30

325

8052

27256

87-88

E30

325i/is/iX

8052

27256

89-91

E30

325i/is/iX

80515

27256

89-91

E30

M3

8051

27128/256

>8/91

E36

325i/is

MCS-96/51

27C256

>9/92

E36

325i/is/ic

MCS-96/51

27C512

93+

E36

M3-Euro

MCS-96/51

27C256

95+

E36

M3

MCS-96/51

27C512

1. Turn on the ignition, but do not start the engine.

2. Press and release the accelerator pedal 5 times. It is necessary to press strongly and rhythmically, to the floor; let it go to the end. On Motronics 3.X a series of clicks should be VERY fast. The first time it may not work.

3. Wait a few seconds.

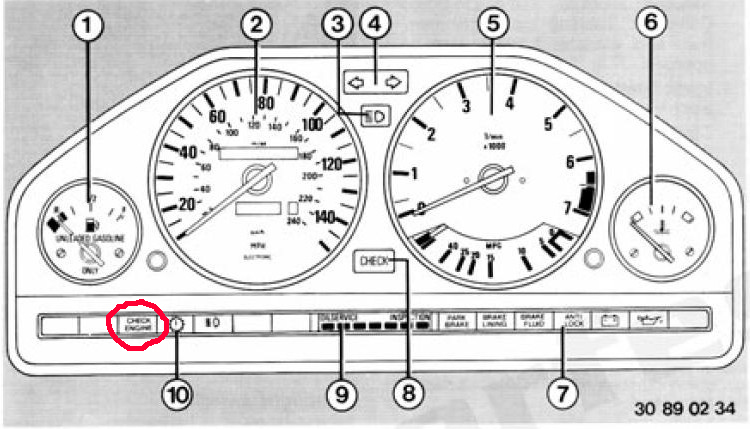

4. The “Check Engine” lamp will flash 1 time, then it will flash, giving out a DME self-diagnosis code.

5. All codes contain 4 digits. The number of blinks corresponds to a digit. There is a pause between the numbers.

For example: ON, pause, ON ON, pause, ON ON, pause, ON ON, OFF corresponds to code 1222.

6. All error codes are displayed sequentially. When all codes are issued, the sequence is cyclically repeated.

7. Turn off the ignition.

1212 Lambda Sensor 2 (Oxygen Sensor)

1213 Going beyond the control signal of the lambda probe 2

1215 Air Mass / Air Flow Meter

1216 Throttle Potentiometer

1221 Lambda Sensor 1

1222 Going beyond the control signal of the lambda probe 1

1223 coolant temperature sensor

1224 intake air temperature sensor

1225 Knock Sensor 1

1226 Knock Sensor 2

1227 Knock Sensor 3

1228 Knock Sensor 4

1231 Supply Voltage

1232 Sensor-switch closed throttle position

1233 Sensor switch full throttle position

1237 Air conditioner pump relay

1243 Missing engine speed sensor signal

1244 Camshaft Position Sensor

1247 Connection to the engine control unit housing

1251 Injector 1

1252 Injector 5

1253 Injector 4

1254 Injector cylinder 8

1255 Injector 6

1256 Injector 3

1257 Injector 7

1258 Injector Cylinder 2

1261 fuel pump relay

1262 The valve of management of turns h.kh.

1263 adsorber purge valve

1264 Lambda probe heating relay

1265 Short circuit in the control lamp circuit failure

1267 air pump

1271 Ignition Coil for Cylinder 1

1272 Cylinder 5 ignition coil

1273 Cylinder 4 ignition coil

1274 Ignition coil of cylinder 8

1275 Cylinder 6 ignition coil

1276 Cylinder 3 ignition coil

1277 Ignition Coil for Cylinder 7

1278 Cylinder 2 ignition coil

1281 Low voltage supply to the engine control unit

1282 Malfunction in the memory of the engine control unit

1283 Injector to housing connection

1284 Knock Control Test Pulse:

1286 Knock Control Circuit

1444 No recorded faults


indicators on the dashboard bmw e30

-Bremslicht - braking signals

-Abblendicht - Dipped

-Standlicht -Parking light

-Rucklicht - taillight

-Nebellicht vorne - front fog light

-Nebellicht hinter - rear fog light

-Kennzeichenlicht - license plate lighting

-Anhangerlicht - trailer lights

-Fernlicht - high beam

-Ruckfahrlicht - reversing light

-Getriebe - breakdown in electric box

-Sensor-Olstand - engine oil level sensor

-Olstend Fetriebe - low oil level in the automatic gearbox





Check-Control - Fault in the Error Controller

Oldruck Sensor - Oil Pressure Sensor

Getriebenotprogramm - Gearbox Control Failure

Bremsbelag pruffen - check brake pads

Waschwasser fullen - Pour water into the washer reservoir

Olstand Motor pruffen - check engine oil level

Funkschlussel Batterie - Remote Control Key Batteries

Kullwasserstand pruffen - Check coolant level
