BMW 3 E46 ELECTRICAL WIRING DIAGRAMS

List of abbreviations used in the notation on the diagrams

Download
Electronic Gasoline Engine Digital Control (DME)
JPG Image 14.7 KB

1 - adsorber

2 - shutoff valve

3 - fuel tank ventilation valve

4 - fuel pressure regulator

5 - injector

6 - pressure adjuster

7 - ignition coil

8 - position sensor

9 - secondary air pump

10 - shutoff valve

11 - air mass meter

12 - control device

13 - throttle sensor

14 - idle speed adjuster

15 - air temperature sensor

16 - exhaust gas recirculation valve

17 - fuel filter

18 - knock sensor

19 - speed sensor

20 - engine temperature sensor

21 - oxygen sensor

22 - diagnostic connector

23 - diagnostic control lamp

24 - differential pressure sensor

25 - fuel pump


Bmw E46 Electric Seat Wiring Diagram

Wiring diagrams include location information, wiring, pin identification, troubleshooting, maintenance, function descriptions, and more. This includes all information that follows wiring and wire connections.

Free download

Download
Gear lock
10-______»________‚¬________° ____µ__‚¬_
JPG Image 131.9 KB
Download
Glass heaters
JPG Image 108.8 KB
Download
Outdoor lighting
JPG Image 132.4 KB
Download
Electric circuit of a combination of devices
16-________±______°___ ____-____‚¬____±_
JPG Image 188.7 KB
Download
Instrument lighting
18-____________µ________°-____‚¬____±___
JPG Image 151.2 KB
Download
The electric circuit of the electric side mirrors
JPG Image 99.8 KB
Download
Wiring diagram for seat heating
JPG Image 104.6 KB
Download
Electric seat adjustment
JPG Image 169.4 KB
Download
Power windows
JPG Image 301.0 KB
Download
Signal buzzer
JPG Image 29.7 KB
Download
Window washer cleaners (Canadian models)
JPG Image 149.1 KB
Download
Parking ventilation
JPG Image 159.4 KB
Download
Anti-theft system
34-____‚¬________________________°__-___
JPG Image 147.9 KB
Download
HiFi Radio
JPG Image 207.8 KB
Download
Speed control system (tempostat)
JPG Image 123.0 KB
Download
Reversing lights
JPG Image 91.0 KB
Download
Head lights
15-________»____________µ-______°__‚¬___
JPG Image 176.6 KB
Download
Interior lighting when opening doors
JPG Image 106.7 KB
Download
central locking
JPG Image 156.8 KB
Download
Sound signal
JPG Image 74.2 KB
Download
Electric drive for the lumbar section of the driver's seat back
JPG Image 106.5 KB
Download
Folding top / sunroof electric drive
JPG Image 225.0 KB
Download
Additional Security System (SRS)
JPG Image 142.3 KB
Download
Heated glass washer nozzles
JPG Image 39.0 KB
Download
Glass washer cleaners BMW E46 (US models)
JPG Image 132.9 KB
Download
Manual air conditioning heating systems
JPG Image 228.9 KB
Download
Basic radio
JPG Image 152.7 KB
Download
Top HiFi Radio
JPG Image 194.1 KB

BMW 3-Series Electrical Diagram 1998-2003 (e46)

The electrical circuit of the launch system

BMW 3-Series Electrical Diagram 1998-2003 (e46)

The electric circuit of a control system of the engine of 2.5 l.

BMW 3-Series Electrical Diagram 1998-2003 (e46)

The electric circuit of a control system of the engine of 2.8 l.

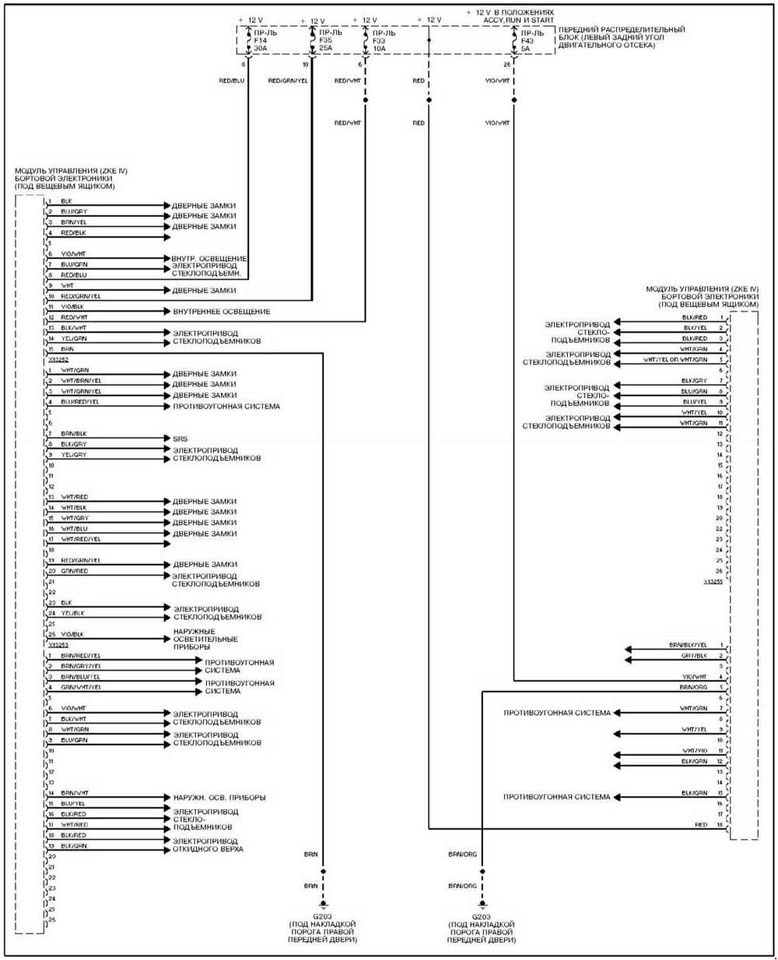

On-board processor module

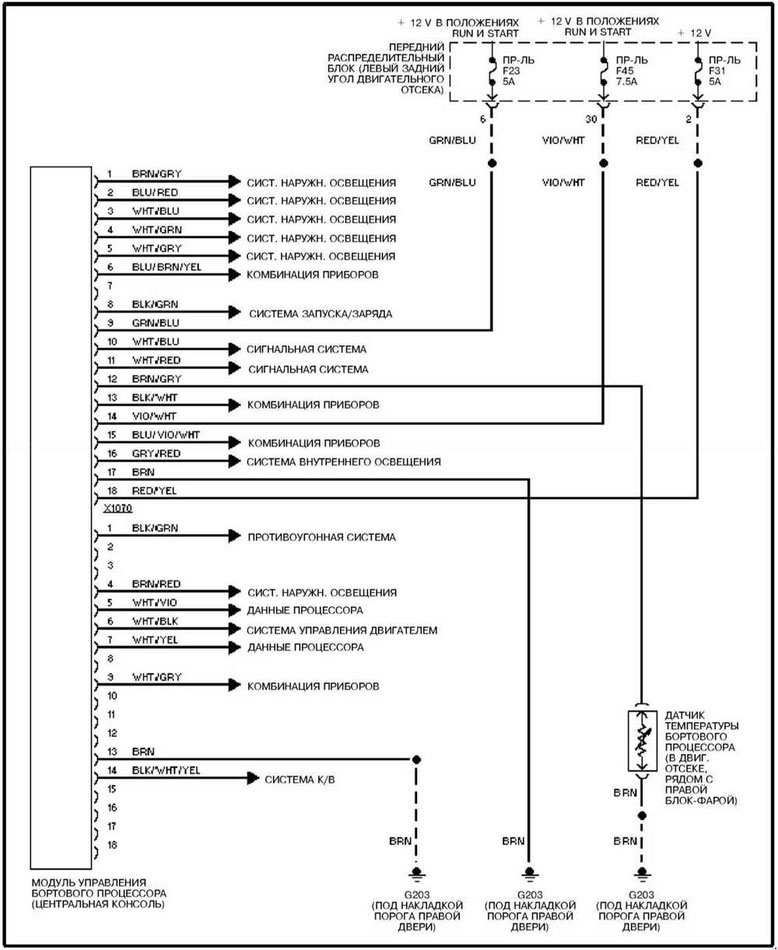

On-board processor circuits

On-board processor data

Cooling fan circuit diagram

The electric circuit of the anti-lock brake system
