DME MS42 Service Manual. Diagnostics
M52TU Engine. OBD II Function. Test Procedure (FTP). Check Engine. E39, E46, E52, E53.
Siemens MS42 Pinout (PDF Download)
Voltage Supply, Peripherals, Engine, Vehicle, Ignition.

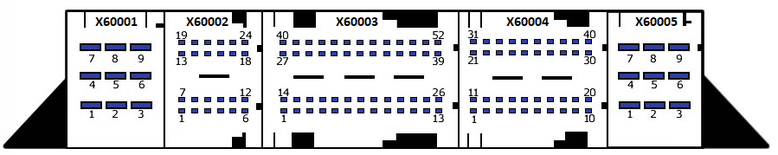

DME MS42 M52TU Pinout
BMW MS42 DME Pinout and Service Manual. A complete technical guide for working with the MS42 engine control unit (used on the M52TUB20/M52TUB25/M52TUB28). Indispensable for diagnosing complex electrical problems. Includes:
- A complete pinout diagram of all three ECU connectors.
- DME ground and power supply locations.
- Signal values (voltage, resistance) for key sensors.
- Sensor testing instructions (lambda probes, MAF, crankshaft position).
- Wiring diagrams for fuel injectors, coils, and the Double VANOS system.
Siemens MS42 E46 pinout
Also fits models E39, E46, E52, E53.

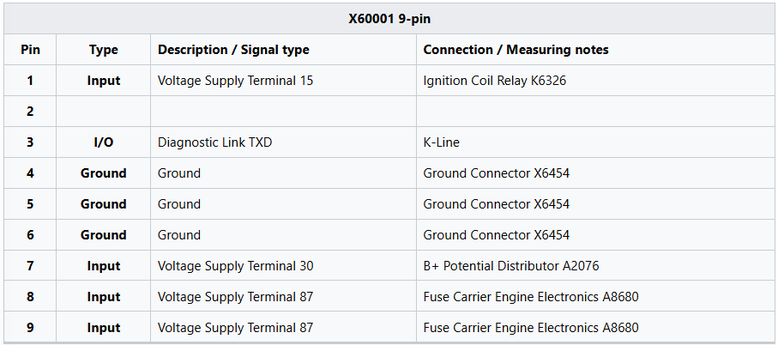

X60001 - Voltage Supply
X60002 - Peripherals
X60003 - Engine (52-pin)
X60004 - Vehicle (40-pin)

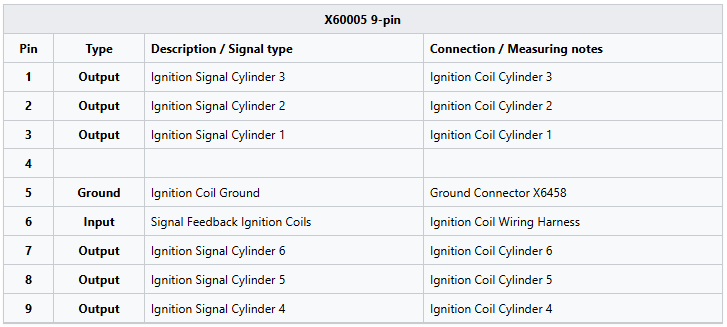

X60005 - Ignition (9-pin)
