BMW F30 Electrical Equipment. Exterior lighting.

The exterior lighting of the F30 is mainly based on the latest BMW models.

F30 is equipped with halogen headlights as standard.

Equipment can be ordered bi-xenon headlights (SA 522).

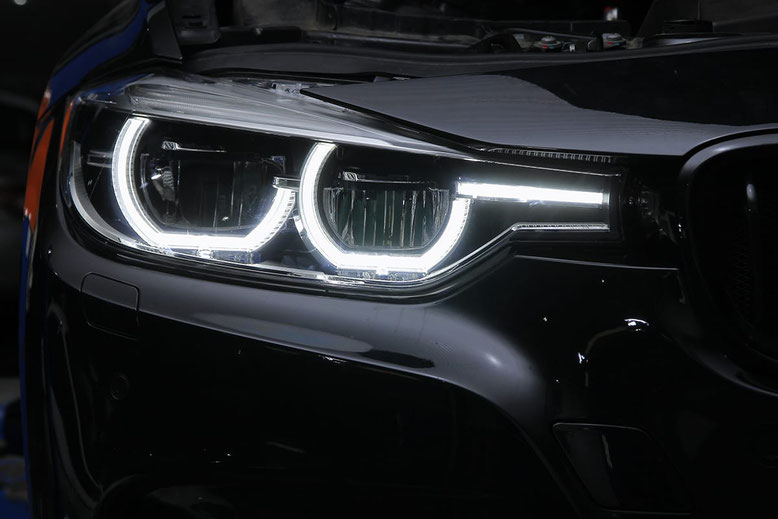

With bi-xenon headlights, constant dipped and parking lights are carried out on

LEDs.

If halogen headlights are installed, the headlight range is manually adjusted.

The cornering light is available for the F30 as

optional equipment (SA 524), which can only be installed in conjunction with

bi-xenon headlights (SA 522).

The FEM module, as the master, is responsible for the operation of the external lighting.

what lighting functions need to be activated or deactivated, and reports this information

REM module via K-CAN 2. The REM module, in turn, informs the FEM module of the status

activated function.

As already familiar from F20, LED indicators are installed in the exterior mirrors

This allowed to abandon the additional direction indicators in the wings.

Detailed information on external lighting fixtures is contained in the information on

Product “Outdoor Lighting System F01 / F02”.

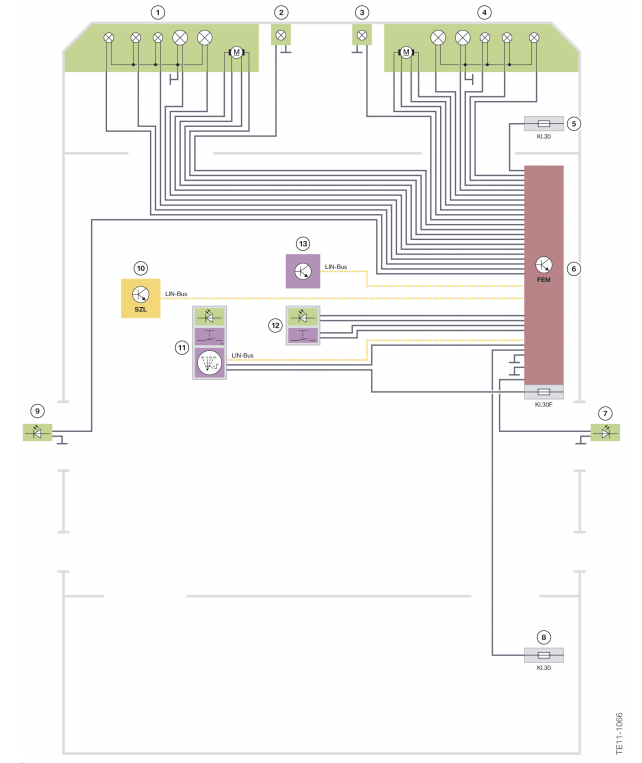

Designation Explanation

1 Left headlight

2 Left fog lamp (SA 520)

3 Right fog lamp (SA 520)

4 Right headlight

5 Power distribution box in the engine compartment

6 Front Electronic Module (FEM)

7 Additional turn indicator in the right rear-view mirror

8 Battery distribution box

9 Additional direction indicator in the left rearview mirror

10 Steering column switch cluster (SZL)

11 Panel of light switches

12 Central locking button / emergency light switch

alarm

13 Rain / light / fog / sun sensor

Kl. 30 Standing Plus

Kl. 30F Contact 30F

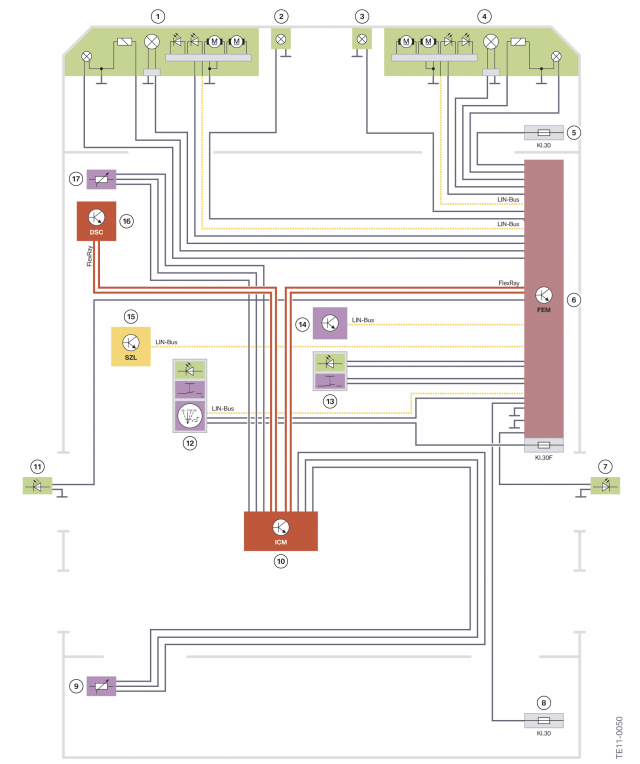

Designation Explanation

1 Left headlight 1

2 Left fog lamp (SA 520)

3 Right fog lamp (SA 520)

4 Right headlight1

5 Power distribution box in the engine compartment

6 Front Electronic Module (FEM)

7 Additional turn indicator in the right rear-view mirror

8 Battery distribution box

9 Rear ride height sensor

10 Integrated Chassis Management (ICM)

11 Additional direction indicator in the left rearview mirror

12 Light switch panel

13 Central locking button / emergency light switch

alarm

14 Rain / light / fog / sun sensor

15 Steering column switch cluster (SZL)

16 Dynamic Stability Control (DSC)

17 Front ride height sensor

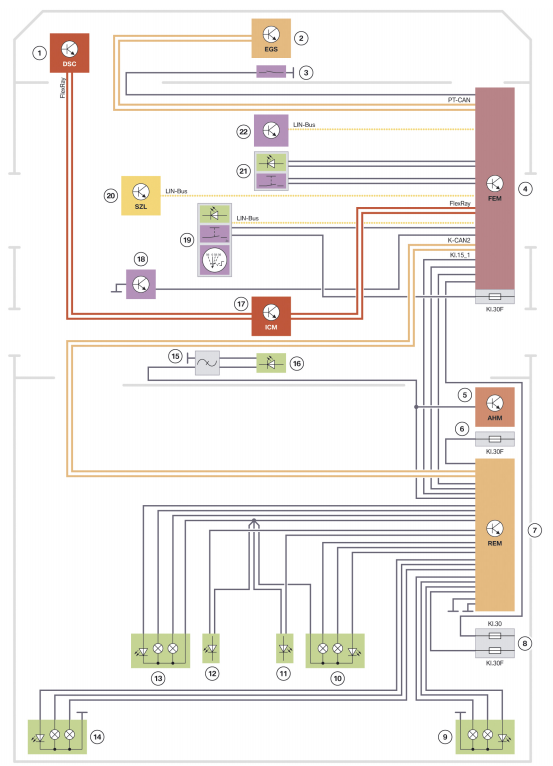

Designation Explanation

1 Dynamic Stability Control (DSC)

2 Electronic Transmission Control (EGS)

3 Contact switch for reversing lights

4 Front Electronic Module (FEM)

5 Trailer Electrical Connection Module (AHM)

6 Power distribution box in the luggage compartment

7 Rear Electronic Module (REM)

8 Battery distribution box

9 Right wing taillight block

10 Right rear light assembly on the boot lid

11 Right license plate light

12 Left license plate light

13 Left tail light assembly on the boot lid

14 Left wing taillight block

15 Anti-interference filter

16 Additional brake light

17 Integrated Chassis Management (ICM)

18 brake light switch

19 Panel light switch

20 Steering column switch cluster (SZL)

21 Central locking button / emergency light switch

alarm

22 Rain / light / fog / sun sensor

Kl. 30 Standing Plus

Kl. 30F Contact 30F

Adaptive cornering light

On the F30, adaptive cornering light (SA 524) is only available when installing all

the following additional equipment:

• Fog lights (SA 520)

• Rain Intensity Sensor (SA 521)

• Xenon light (SA 522)

• Main beam control system (SA 5AC).

Control

Adaptive cornering light is active in the “A” switch position with the light on

ignition.

The cornering light automatically switches on depending on the angle of rotation

steering wheels or turning on the direction indicator.

Cornering lights

The cornering function is included in SA “Adaptive cornering”.

when cornering and when folding to a speed of 65 km / h, one of the fog lights turns on

As a corner light, the inner corner of the corner is better illuminated.

In order not to dazzle oncoming drivers, adaptive headlights on

place facing the passenger side.

Adjustable light distribution

Adaptive cornering light provides a different distribution of light

flow depending on the situation.

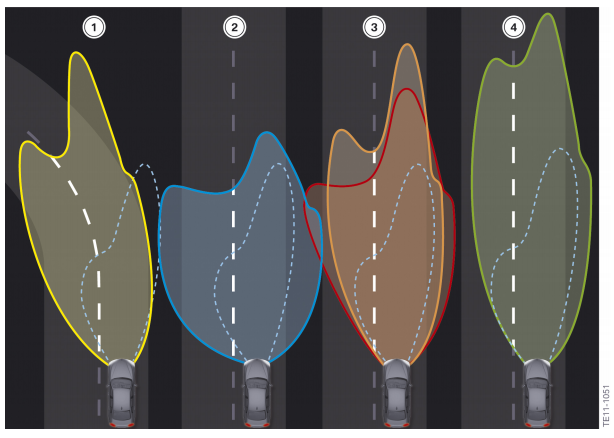

Designation Explanation

1 Adaptive cornering light

2 Light distribution for fog traffic

3 Distribution of luminous flux for movement outside the city (orange);

light distribution for city traffic (red)

4 Light distribution for motorway traffic

Designation Explanation

1 Parking light

2 Main beam

3 dipped beam

4 direction indicator

5 Constant low beam

1 direction indicator

2 Reversing light

3 Rear position lamp

4 Rear fog light

5 Stop light

Interior lighting

Designation Explanation

1 Driver's footwell light

2 Glove box light

3 glove box contact

4 Front passenger footwell light

5 Power distribution box in the engine compartment

6 Front Electronic Module (FEM)

7 Illumination of the inside handle of the front passenger door

8 Illumination of the space in front of the door in the outer handle of the front door

passenger

9 Front passenger door threshold lighting

10 Front passenger door contact

11 Passenger side center pillar lighting

12 Illumination of the internal handle of the right back door

13 Illumination of the space in front of the door in the outer rear right handle

doors2

14 Illumination threshold right rear door

15 Rear right door contact

16 Power distribution box in the luggage compartment

17 Rear Electronic Module (REM)

18 Tail light

19 Contact switch for boot lid with boot lid lock

20 Rear light

21 Left rear door contact

22 Illumination threshold left rear door

23 Illumination of the space in front of the door in the outer rear left handle

doors2

24 Illumination of the internal handle of the left rear door1

25 Central pillar lighting on driver's side

26 Roof function center FZD with front light

salon5

27 Driver door contact

28 Lighting the threshold of the driver's door

29 Highlighting the space in front of the door in the outer handle of the driver's door

30 Illumination of the inside handle of the driver's door

31 Driver mirror makeup light switch

32 Driver's mirror light

33 Instrument panel lights

34 Passenger mirror cosmetic light

35 Passenger cosmetic mirror light switch
