BMW X6 FUSE DIAGRAM (E71 / E72; 2007-2014)

FUSE DIAGRAM
FUSE DIAGRAM

2008 BMW X6 fuse diagram. 306 h.p.

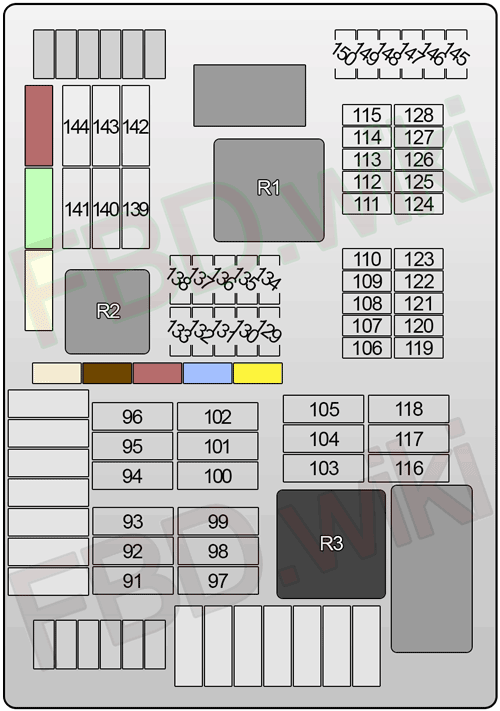

Luggage compartment fuse box

No.

A

Appointment

91

30

Electric auxiliary heater, rear right

92

25

→ 03.2011: Power management transfer box

30

04.2011 →: Power management transfer box

93

30

Rear axle torque distribution system ( QMVH )

94

30

Parking brake control unit

95

30

Electric auxiliary heater, rear left

96

40

Footwell module

97

20

→ 09.2008: Fuel pump relay ( fuel pump without electronic regulation), fuel pump control unit ( EKPS ) ( fuel pump, electronically regulated)

98

15

Rear heater

99

40

03.2007 →: Electric baggage door

100

20

Heated rear left seat, 15 pin unloading relay (without rear air conditioning)

101

30

Driver's seat module, driver's seat adjustment control unit, driver's seat lumbar adjustment control unit

102

30

Front passenger seat module, front passenger seat adjustment control unit, front passenger seat lumbar adjustment control unit

103

30

→ 09.2009: Amplifier Audio

40

2009-10-10 →: Audio system amplifier

104

25

Electrically retractable drawbar

105

20

10.2008 →: fuel pump relay ( toplevny pump without electronic control), the fuel pump control unit ( EKPS ) ( toplevny pump with electronically controlled)

106

7.5

Vertical Dynamics Control (Damper Satellite Rear L / R)

107

10

Electronic ride height control, rear display (→ 03.2012), tire pressure monitoring system - RDC (04.2012 →)

108

5

Rear view camera, rear audio system, headphone jack, headphone connection module

109

10

→ 03.2012: Satellite receiver (→ 03.2011), digital tuner (USA) (→ 09.2009), tire pressure monitoring system - RDC (04.2010 →)

15

04.2012 →: Audio system Active Sound Design (ASD)

110

7.5

→ 02.2009: Luggage compartment lighting suppression filter interface module High (ULF-SBX-H), telematics (TCU), interface module (ULF-SBX), phone holder holder unit , USB hub

5

03.2009 →: Luggage compartment lighting suppression filter interface module High (ULF-SBX-H), Combox Media, interface module (ULF-SBX), phone holder holder unit , USB hub

111

20

Front cigarette lighter, charging socket in the rear center console

112

5

Driver's seat heating module, front passenger seat heating module, 15 pin unloading relay, rear left seat heating module, rear right seat heating module

113

20

Luggage compartment socket, center console socket

114

5

Overhead console, proximity alarm when parking - parking sensors PDC ), all-round camera, driver assistance systems using cameras

115

20

Rear cigarette lighter rear outlet

116

20

Socket connection of electrical trailer

117

20

Ceiling console sunroof

118

-

 -

119

10

→ 09.2009: Video module

5

10.2009 →: Video module

120

5

Vertical dynamics control system

121

5

The electric drive of the luggage door

122

5

Fuel tank leakage diagnostic module

123

5

Rear axle torque distribution system ( QMVH )

124

5

The electronic block of management JBE

125

5

Block control transfer box

126

5

Rear air conditioning control unit

127

5

Engine cooling fan cut-off relay

128

5

Muffler flap

129

5

Parking brake control unit, aerial diversity

130

15

63, 63, ActiveHybrid Coolant pump for charge air cooler No. 2, coolant pump for intercooler 63; 10.2008 →)

15

57: Charge air cooler coolant pump

131

5

→ 09.2009: Instrument cluster, OBD II diagnostic socket

5

2009-03-10: Active Sound Design (ASD) audio system

132

7.5

Audio amplifier Active Sound Design ASD (10.2009 →), Comfort access control unit ( keyless entry), Outside door handle electronics on the passenger side, Outside door handle electronics on the left rear door, Outside door handle electronics on the rear right

133

5

ActiveHybrid Interface Module

134

5

Steering column switch cluster, OBD II (10.2009 →), instrument cluster (10.2009 →)

135

20

Electric tailgate with automatic closer

136

5

Telematics TCU ), phone holder / holder unit

5

Combox Media

137

5

system navigation

138

10

Electrically retractable drawbar

139

20

Rear right seat heating module

140

20

Driver's seat heating module

141

20

Front passenger seat heating module

142

20

→ 09.2009: CCC multi-audio system controller ASK or CHAMP

20

10.2009 →: Information computer - Car Information Computer (CIC)

143

25

→ 03.2010: Trailer electrical connection module

20

04.2010 →: Trailer electrical connection module

144

25

→ 03.2010: Trailer electrical connection module

20

04.2010 →: Trailer electrical connection module

145

10

Avtodovodchik doors driver

146

10

Front passenger door automatic closer

147

10

Avtodovodchik rear left door

148

10

Avtodovodchik rear right door

149

7.5

Driver's seat adjustment control unit

150

7.5

Front passenger seat adjustment control unit

Passenger compartment fuse box

No.

A

Appointment

1

20

Steering column adjustment motor, heating and air conditioning system

2

10

Glove box lock, glove box lighting (10.2009 →)

3

7.5

Anti-theft alarm siren, roll sensor

4

10

except 55: Engine control unit ( DME )

10

N55: Integrated power supply module

10

ActiveHybrid Engine control unit ( DME )

5

10

Ceiling console

6

10

Joystick to the iDrive a DVD -cheyndzher, the CD -cheyndzher, video switch

7

5

Active Cruise Control, Longitudinal Dynamics Control, Tire Pressure Monitoring ( RDC )

8

7.5

Vertical Dynamics Control (Damper Satellite Front Left / Right)

9

15

Horn relay (horn left / right)

10

5

Parking brake, car access system

11

20

Autonomous additional heater

12

10

Steering column switch cluster

13

15

System Management manual transmission

14

10

Dynamic Drive active suspension system

15

10

Selector box gear

16

10

Driver door switch block, driver outside mirror, front passenger outside mirror

17

5

Central information display, heating and air conditioning system (without power steering column adjustment ), active video switch (Japan)

19

7.5

Upper display, electronics box fan, fuel tank breather valve (→ 09.2011), fuel tank breather shut-off valve (→ 09.2011)

19

5

Dynamic Stability Control ( DSC ) roof console (no sunroof)

20

10

Integrated Chassis Management ( ICM ), Servotronic (without ICM )

21

30

Heated rear window

22

5

Left headlight

23

40

Footwell module

24

40

System active steering control

25

5

Right headlight

26

30

→ 08.2008: Headlight washer pump

25

08.2008 →: Headlight washer pump

27

15

→ 03.2010: Central locking

20

2010 04 →: Central locking

28

15

Central locking

29

40

Rear left power window

30

30

Central locking

31

40

Rear right power window

32

40

Air suspension compressor

33

30

Footwell module

34

30

Footwell module

35

30

N63, S63, ActiveHybrid Lambda probes

36

30

N63, ActiveHybrid Solenoid valve VANOS №2 - side inlet the electromagnetic valve VANOS №2 - side issue sensor crank shaft the valve recycling the charge air the valve recirculation №2, thermoanemometric flowmeter air (№1, №2)

37

-

 -

38

30

N57: SCR load relay

39

40

The system of access to vehicle

40

30

Dynamic Stability Control ( DSC )

41

7.5

63, 63, ActiveHybrid # 2 charge air cooler coolant pump , radiator louver drive

7.5

54: Hot-wire auxiliary air mass meter, radiator louver drive

42

30

63, 63, ActiveHybrid Engine control unit ( DME ), intercooler coolant pump , quantity control valve, wastegate pressure converter (no. 1, no. 2)

30

54: Engine control unit ( DME ), fuel tank breather valve, crankshaft sensor, quantity control valve, lambda probes (upstream of catalytic converter)

43

30

63, 63, ActiveHybrid Intake Camshaft Position Sensor (# 1, # 2), Exhaust Camshaft Position Sensor (# 1, # 2), Oil Condition Sensor, Fuel Tank Vent Valve, Programmable Thermostat, Intercooler Coolant Pump

30

54: Lambda probes (after catalytic converter), oil condition sensor

44

30

Front wiper

Maintenance-free fuses

45

60

Engine cooling fan cut-off relay electric fan )

46

40

Dynamic Stability Control ( DSC )

47

40

57, 57 US Fuel heating system

48

40

Heater fan output stage )

49

-

 -

Relay

R1

Wiper relay # 2)

R2

Air suspension compressor

R3

 -





Automatic closer

Gasoline engines:

N54B30 - 3.0L (xDrive35i)

N55B30 - 3.0L (xDrive35i)

N63B44 - 4.4L (xDrive50i, ActiveHybrid X6)

S63B44 - 4.4L (X6 M)



Diesel engines:

M57D30TÜ2 - 3.0L (xDrive30d, xDrive35d)

N57D30OL - 3.0L (xDrive30d)

N57D30TOP - 3.0L (xDrive40d)

N57S - 3.0L (X6 M50d)

Engine Compartment Fuse Box - Maintenance Free (N55)

No.

A

Appointment

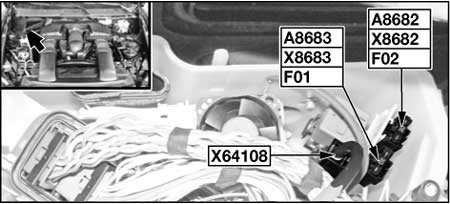

01

15

Engine control unit (DME)

02

20

Engine control unit (DME)

03

15

Engine control unit ( DME ), muffler flap, radiator louver drive

04

15

Engine control unit ( DME ), injectors

05

20

Engine control unit ( DME ), ignition

06

40

Engine control unit ( DME ), Valvetronic

07

50

The electric cooling fluid

Fuse box in the engine compartment ( N 57, M 57)

No.

A

Appointment

001

20

57: pressure regulator boost №1, hall sensor camshaft №1, the pressure control valve in the line Rail , quantity control valve, the throttle valve

20

57: NOx sensor in front of SCR catalyst , boost pressure regulator - high pressure stage (variable turbocharging geometry ), boost pressure regulator no. 2 - high pressure stage, low pressure AGR valve , camshaft hall sensor no. 1, compressor bypass changeover valve low pressure control valve, rail pressure control valve, quantity control valve, throttle valve

002

20

57: Exhaust gas recirculation solenoid valve, crankcase ventilation heater, crankcase breather valve, swirl valve changeover solenoid valve, lambda probe in front of catalytic converter, preheating control unit, oil condition sensor

20

57: Valve Wastegate the bypass valve of the compressor, the solenoid valve the exhaust gas recirculation valve stiffness adjusting motor mount pads, the switching solenoid valve vortex valves lambda probe upstream of the catalyst, the control unit of the preheating system, oil condition sensor

003

30

57, 57: Engine control unit ( DDM )

004

30

M57: Radiator shutter actuator

10

57: Heated crankcase ventilation, SCR load relay , radiator shutter drive, NOx sensor downstream of SCR catalytic converter , transfer pump, SCR delivery module , passive tank fuel level sensor

005

10

57, 57: Coolant pump relay, changeover valve for recirculation flap of high pressure compressor no. 2, pressure converter for wastegate, changeover valve for turbine control flap

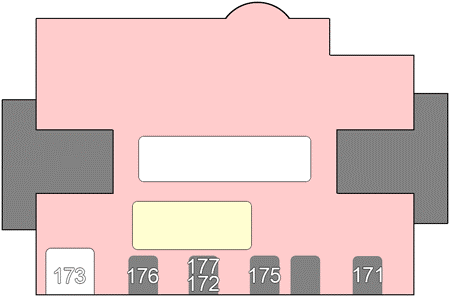

Unit power fuses ( Sealed )

No.

A

Appointment

171

100

→ 02.2007: The fan system of cooling of the engine

100

03.2007 →: disconnecting relay blower motor the blower motor cooling system (with the module electrical connection of the trailer)

172

100

Rear power distribution box (luggage compartment fuse box)

173

250

Power distribution box (passenger compartment fuse box)

504

100

ActiveHybrid Isolation Relay

176

80

Petrol engines (except 55), ActiveHybrid 15 pin unloading relay

80

Diesel engines: Main relay for engine control unit ( DDE )

100

N55: Integrated power supply module

177

100

→ 09.2008: Electric auxiliary heater

80

10.2008 →: Electric auxiliary heater

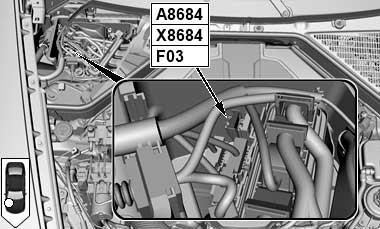

Fuses in the engine compartment ( N 63, S 63, ActiveHybrid )

No.

A

Appointment

01

30

→ 04.2013: Coolant pump for turbocharger , engine control unit ( DME )

30

05.2013 →: Engine control unit ( DME ), fuse: "03"

02

30

Ignition coils, ignition coil suppression capacitor

No.

A

Appointment

03

five

Pump cooling fluid turbocharger

No.

A

Appointment



06

15

Pump cooling fluid intercooler

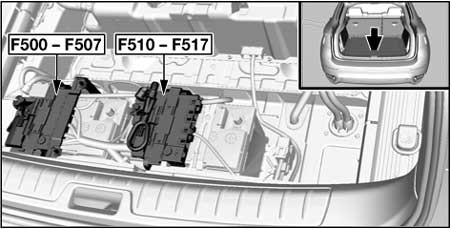

Luggage compartment fuses ( ActiveHybrid )

No.

A

Appointment

504

100

Isolating relay



510

-

 -

511

100

Additional battery fuse : "512"

512

80

Fuses : "614", "615"

513

-

 -

514

-

 -

515

-

 -

516

-

 -

No.

A

Appointment

600

10

Battery control module

601

10

Switching the brake drive

602

10

Emergency light terminal generator, battery control module

603

15

Power electronics

604

40

Vacuum pump solid-state relay

605

5

Engine management systems

606

5

Electric A / Compressor

607

15

System Management manual transmission

608

5

Electromechanical power steering

609

5

Vacuum pump mechanical relay

610

5

Tank control function block

611

5

Relay terminal 30G

612

-

 -

613

5

Switching the brake drive

614

20

Blocking transmission to the parking lot

615

5

Interface module

Relay

Load relay, SCR system ( K 2085 )

Fuel pump relay ( K6301 )

Unloading relay 15 contacts ( K9 )

Relay valve quantity control (K6342) N 63, S 63

Cooling fan cut-off relay ( K9137 )

Engine Control Unit Main Relay - Diesel ( DDE ) ( K 2003 a ): LHD / RHD
