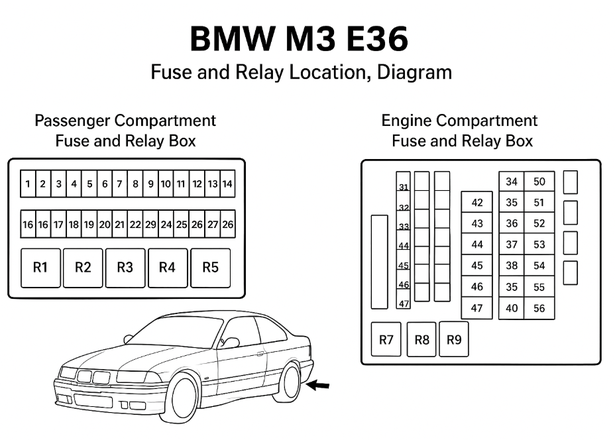

BMW M3 E36 Fuse and Relay Location Diagrams
BMW M3 E36 Fuse and Relay Diagram
BMW E36 Fuses and Relays Location Diagrams
Table d. 1994 E36 Fuse Positions (continued)
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 1 | 30A | Power sunroof |
| 2 | 15A | Not used |
| 3 | 30A | Headlight washer (also see fuse 37) |
| 4 | 15A | Heated seats (see also fuse 23) |
| 5 | 30A | Power seats (see also fuse 40) |
| 6 | 20A | Rear window defogger/blower (see also fuse 23) |
| 7 | 5A | Central body electronics (ZKE IV) (convertible only) (see also fuse 33, 43); Central locking (see also fuse 35, 43); Convertible roof (see also fuse 35, 43); Roll-over protection (see also fuse 35, 42, 43) |
| 8 | 15A | Horn |
| 9 | 20A | Sound system (see also fuse 44) |
| 10 | 30A | ABS (see also fuse 21, 38, 46); AST (see also fuse 21, 38) |
| 11 | 7.5A | Headlights/foglights (see also fuse 12, 15, 23, 25, 29, 30); On-Board Computer (see also fuse 12, 23, 27, 31, 33, 37, 45, 46) |
| 12 | 7.5A | Headlights/foglights (see also fuse 11, 15, 23, 25, 29, 30); On-Board Computer (see also fuse 11, 23, 27, 31, 33, 37, 45, 46) |
| 13 | 5A | Not used |
| 14 | 30A | Front power windows |
| 15 | 15A | Headlights/foglights (see also fuse 11, 12, 23, 25, 29, 30) |
| 16 | 5A | Engine control module (see also fuse 28); Heating and A/C (IHKA E36) (see also fuse 20, 23, 31, 37, 39, 41) |
| 17 | 10A | Not used |
| 18 | 15A | Fuel pump |
| 19 | 30A | Rear power windows |
| 20 | 30A | Blower motor; Heating and A/C (IHKA E36) (see also fuse 16, 23, 31, 37, 39, 41); Park ventilation |
| 21 | 5A | ABS (see also fuse 10, 38, 46); AST (see also fuse 10, 38) |
| 22 | 5A | Instrument illumination (see also fuse 25, 37); Park/taillights (see also fuse 35, 37) |
| 23 | 5A | Headlights/foglights (see also fuse 11, 12, 15, 25, 29, 30); Heated seats (see also fuse 4); Heating and A/C (IHKA E36) (see also fuse 16, 20, 31, 37, 39, 41); Instrument cluster (see also fuse 27, 31, 46); On-Board Computer (see also fuse 11, 12, 27, 31, 33, 37, 45, 46); Rear window defogger/blower (see also fuse 6); Turn signals/hazard lights (see also fuse 34) |
| 24 | 10A | Power mirrors |
| 25 | 5A | Headlights/foglights (see also fuse 11, 12, 15, 23, 29, 30); Instrument illumination (see also fuse 22, 37) |
| 26 | 10A | Back-up lights; Electronic transmission control (A4S 310R) (see also fuse 26, 46) |
| 27 | 5A | Instrument cluster (see also fuse 23, 31, 46); On-Board Computer (see also fuse 11, 12, 23, 31, 33, 37, 45, 46) |
| 28 | 5A | Cruise control (see also fuse 46); Engine control module (see also fuse 16); Starting system; Electronic transmission control (A4S 310R) (see also fuse 26, 46) |
| 29 | 7.5A | Headlights/foglights (see also fuse 11, 12, 15, 23, 25, 30) |
| 30 | 7.5A | Headlights/foglights (see also fuse 11, 12, 15, 23, 25) |
| 31 | 5A | Multi-function clock; Heating and A/C (IHKA E36) (see also fuse 16, 20, 23, 37, 39, 41); Instrument cluster (see also fuse 23, 27, 46); On-Board Computer (see also fuse 11, 12, 23, 27, 33, 37, 45, 46) |
| 32 | 30A | Cigar lighter/ashtray lights |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 33 | 10A | Central body electronics (ZKE IV) (see also fuse 7, 43); Charging socket; Interior lights (see also fuse 43); License plate/luggage compartment lights (see also fuse 37); On-Board Computer (see also fuse 11, 12, 23, 27, 31, 37, 45, 46); Park/taillights (see also fuse 22, 37); Telephone (see also fuse 43) |
| 34 | 15A | Crash control module; Turn signals/hazard lights (see also fuse 23) |
| 35 | 25A | Central locking (see also fuse 7, 43); Convertible roof (see also fuse 7, 43); Roll-over protection (see also fuse 7, 42, 43) |
| 36 | 30A | Wiper/washer (see also fuse 37, 44, 45) |
| 37 | 10A | Cassette compartment light; Engine compartment light; Heating and A/C (IHKA E36) (see also fuse 16, 20, 23, 31, 39, 41); Instrument illumination (see also fuse 22, 25); License plate/luggage compartment lights (see also fuse 33); On-Board Computer (see also fuse 11, 12, 23, 27, 31, 33, 45, 46); Park/taillights (see also fuse 22, 33); Wiper/washer (see also fuse 36, 44, 45) |
| 38 | 30A | ABS (see also fuse 10, 21, 46); AST (see also fuse 10, 21) |
| 39 | 7.5A | Heating and A/C (IHKA E36) (see also fuse 16, 20, 23, 31, 37, 41) |
| 40 | 30A | Power seats (see also fuse 5) |
| 41 | 30A | Heating and A/C (IHKA E36) (see also fuse 16, 20, 23, 31, 37, 39); Radiator auxiliary fan |
| 42 | 7.5A | Airbag (SRS) (see also fuse 43); Roll-over protection (see also fuse 7, 35, 43) |
| 43 | 5A | Anti-theft system (Alpine); Airbag (SRS) (see also fuse 42); Central body electronics (ZKE IV) (see also fuse 7, 33); Central locking (see also fuse 7, 35); Convertible roof (see also fuse 7, 35); Interior lights (see also fuse 33); Roll-over protection (see also fuse 7, 35, 42); Telephone (see also fuse 33) |
| 44 | 15A | Glove compartment light; Sound system (see also fuse 9); Wiper/washer (see also fuse 36, 37, 45) |
| 45 | 7.5A | On-Board Computer (see also fuse 11, 12, 23, 27, 31, 33, 37, 46); Wiper/washer (see also fuse 36, 37, 44) |
| 46 | 15A | ABS (see also fuse 10, 21, 38); Brake lights; Multi-function clock (see also fuse 23, 27, 31, 45); Cruise control (see also fuse 28); Electronic transmission control (A4S 310R) (see also fuse 26, 28); Instrument cluster (see also fuse 23, 27, 31); On-Board Computer (see also fuse 11, 12, 23, 27, 31, 33, 37, 45) |
Table g. 1997-1998 E36 Fuse Positions
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 1 | 30A | Power sunroof |
| 2 | 5A | Engine controls DME M5.2 (see also fuses 16, 18, 39, 46) |
| 3 | 30A | Wiper/washer module (see also fuse 36, 37, 44) |
| 4 | 15A | Heated seats (see also fuse 23) |
| 5 | 30A | Power seats (see also fuse 40) |
| 6 | 20A | Rear window defogger/blower (see also fuse 23, 43) Antenna (see also fuse 23) |
| 7 | 5A | Central locking (see also fuse 28, 31, 35, 45) Convertible roof (see also fuse 24, 27, 42, 43, 49) |
| 8 | 15A | Horn |
| 9 | 20A | Sound system (see also fuse 33, 43, 44) |
| 10 | 30A | ABS (see also fuse 21, 27, 38, 46) AST (see also fuse 10, 27, 38, 46) |
| 11 | 7.5A | Headlights/foglights (see also fuse 12, 15, 23, 25, 29, 30) On-Board Computer (see also fuse 12, 23, 26, 27, 31, 33, 37, 45, 46) |
| 12 | 7.5A | Headlights/foglights (see also fuse 11, 15, 23, 25, 29, 30) On-Board Computer (see also fuse 11, 23, 26, 27, 31, 33, 37, 45, 46) |
| 13 | 5A | Not used |
| 14 | 30A | Central body electronics (ZKE IV) (see also fuse 33, 35, 43) Power windows (see also fuse 19) |
| 15 | 15A | Headlights/foglights (see also fuse 11, 12, 23, 25, 29, 30) |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 16 | 5A | Engine control DME M5.2 (see also fuse 2, 18, 39, 46) Engine control DME MS 41.1 (see also fuse 18, 39, 46, 50) Heating and A/C (IHKA E36) (see also fuse 20, 23, 31, 39, 41, 48) |
| 17 | 10A | Not used |
| 18 | 15A | Engine control DME M5.2 (see also fuse 2, 16, 39, 46) Engine control MS 41.1 (see also fuse 16, 39, 46, 50) |
| 19 | 30A | Power windows (see also fuse 14) |
| 20 | 30A | Blower motor Heating and A/C (IHKA E36) (see also fuse 16, 23, 31, 37, 39, 48) Park ventilation |
| 21 | 5A | ABS (see also fuse 10, 27, 38, 46) AST (see also fuse 10, 27, 38, 46) |
| 22 | 5A | Instrument illumination (see also fuse 25, 33, 37) |
| 23 | 5A | Antenna (see also fuse 6) Headlights/foglights (see also fuses 11, 12, 15, 25, 29, 30) Heated seats (see also fuse 4) Heating and A/C (IHKA E36) (see also fuse 16, 20, 31, 39, 41, 48) Instrument cluster (see also fuse 27, 31, 45, 46) Multi-function clock (see also fuse 26, 27, 31, 45, 46) On-Board Computer (see also fuse 11, 12, 27, 31, 33, 37, 45, 46) On-Board Display (see also fuse 26, 27, 31, 45, 46) Rear window defogger/blower (see also fuse 6, 43) Turn signals/hazard lights (see also fuse 6, 43) |
| 24 | 10A | Convertible roof (see also fuse 7, 27, 42, 43, 49) Power mirrors |
| 25 | 5A | Headlights/foglights (see also fuse 11, 12, 15, 23, 29, 30) Instrument illumination (see also fuse 22, 33, 37) |
| 26 | 10A | Back-up lights Electronic transmission control (A4S 310R/2) (see also fuse 28, 46) Electronic transmission control (A5S 310Z) (see also fuse 28, 46) Multi-function clock (see also fuse 23, 27, 31, 45, 46) On-Board Computer (see also fuse 11, 12, 23, 27, 31, 33, 37, 45, 46) |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 27 | 5A | Airbag (SRS) (see also fuse 42) ABS (see also fuse 10, 21, 38, 46) AST (see also fuse 10, 21, 38, 46) Convertible roof (see also fuses 7, 24, 42, 43, 49) Instrument cluster (see also fuses 23, 31, 45, 46) Multi-function clock (see also fuses 23, 26, 31, 45, 46) On-Board Computer (see also fuses 11, 12, 23–26, 31, 33, 37, 45, 46) On-Board Display (see also fuses 23, 27, 31, 45, 46) |
| 28 | 5A | Central locking (see also fuses 7, 31, 35, 45) Cruise control (see also fuse 46) Electronic transmission control (A4S 310R/2) (see also fuses 26, 46) Electronic transmission control (A5S 310Z) (see also fuses 26, 46) Driveaway protection (EWS II) (see also fuses 31, 45) Starting system (see also fuses 31, 45) |
| 29 | 7.5A | Headlights/foglights (see also fuses 11, 12, 15, 23, 25, 30) |
| 30 | 7.5A | Headlights/foglights (see also fuses 11, 12, 15, 17, 23, 25, 29) |
| 31 | 5A | Central locking (see also fuses 7, 28, 35, 45) Driveaway protection (EWS II) (see also fuses 28, 45) Heating and A/C (IHKA E36) (see also fuses 16, 20, 23, 39, 41, 48) Instrument cluster (see also fuses 23, 27, 45, 46) Multi-function clock (see also fuses 23, 26, 27, 45, 46) On-Board Computer (see also fuses 11, 12, 23–26, 27, 33, 37, 45, 46) On-Board Display (see also fuses 23, 26, 27, 31, 45, 46) Starting system (see also fuses 28, 45) |
| 32 | 30A | Cassette compartment (see also fuses 33, 37, 44) Charging socket (see also fuses 33, 37, 44) Cigarette lighter/ashtray lights (see also fuses 33, 37, 44) Glove compartment light (see also fuses 33, 37, 44) |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 33 | 10A | Ashtray light (see also fuses 32, 37, 44) Cassette compartment (see also fuses 32, 37, 44) Cellular phone (see also fuse 43) Central body electronics (ZKE IV) (see also fuses 14, 35, 43) Charging socket (see also fuses 32, 37, 44) Cigar lighter (see also fuses 32, 37, 44) Instrument illumination (see also fuses 22, 25, 37) Interior lights (see also fuse 43) Glove compartment light (see also fuses 32, 37, 44) License plate/luggage compartment lights (see also fuse 37) Luggage compartment light (see also fuse 37) On-Board Computer (see also fuses 11, 12, 23, 26, 27, 31, 37, 45, 46) Park/taillights (see also fuse 37) Sound system (see also fuses 9, 43, 44) |
| 34 | 15A | Crash control module Turn signals/hazard lights (see also fuse 23) |
| 35 | 25A | Central body electronics (ZKE IV) (see also fuses 14, 33, 43) Central locking (see also fuses 7, 28, 31, 45) |
| 36 | 30A | Headlight washers (see also fuses 3, 37) Wiper/washer (see also fuses 3, 37, 44) |
| 37 | 10A | Ashtray light (see also fuses 32, 33, 44) Cassette compartment light (see also fuses 32, 33, 44) Charging socket (see also fuses 32, 33, 44) Cigar lighter (see also fuses 32, 33, 44) Glove compartment light (see also fuses 32, 33, 44) License plate/luggage compartment lights (see also fuse 33) Instrument illumination (see also fuses 22, 25, 33) On-Board Computer (see also fuses 11, 12, 23, 26, 27, 31, 33, 45, 46) Park/taillights (see also fuse 33) Wiper washer module (see also fuses 3, 36, 44) |
| 38 | 30A | ABS (see also fuses 10, 21, 27, 46) AST (see also fuses 10, 21, 27, 46) |
| 39 | 7.5A | Engine control DME M5.2 (see also fuses 2, 16, 18, 46) Engine control DME MS 41.1 (see also fuses 16, 18, 46, 50) Heating and A/C (IHKA E36) (see also fuses 12, 20, 23, 31, 41, 48) |
| 40 | 30A | Power seats (see also fuse 5) |
| 41 | 30A | Heating and A/C (IHKA E36) (see also fuses 16, 20, 23, 31, 39, 48) Radiator auxiliary fan |
| 42 | 7.5A | Airbag (SRS) (see also fuse 27) Convertible roof (see also fuses 7, 24, 27, 43, 49) Roll-over protection (see also fuse 43) |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 43 | 30A | Convertible roof (see also fuses 7, 24, 27, 42, 49) Cellular phone (see also fuse 33) Central body electronics (ZKE IV) (see also fuses 14, 33, 35) Interior lights (see also fuse 33) Rear window defogger/blower (see also fuses 6, 23) Roll-over protection (see also fuse 42) Sound system (see also fuses 9, 33, 44) |
| 44 | 5A | Cassette compartment (see also fuses 9, 32, 33, 37, 43) Sound system (see also fuses 9, 33, 43) Wiper/washer module (see also fuses 3, 36, 37) |
| 45 | 7.5A | Central locking (see also fuses 7, 28, 31, 35) Driveaway protection (EWS II) (see also fuses 28, 31) Instrument cluster (see also fuses 23, 27, 31, 46) Multi-function clock (see also fuses 23, 26, 27, 31, 46) On-Board Computer (see also fuses 11, 12, 23–27, 31, 33, 37, 46) On-Board Display (see also fuses 23, 26, 27, 31, 46) Starting system (see also fuses 28, 31) |
| 46 | 5A | ABS (see also fuses 10, 21, 27, 38) AST (see also fuses 10, 21, 27, 38) Cruise control (see also fuse 28) Driveaway protection (EWS II) (see also fuses 28, 31, 45) Electronic transmission control (A4S 310R/2) (see also fuse 26, 28) Electronic transmission control (A5S 310Z) (see also fuse 26, 28) Instrument cluster (see also fuses 23, 27, 31, 45) Multi-function clock (see also fuses 23, 26, 27, 31, 45) On-Board Computer (see also fuses 11, 12, 23–27, 31, 33, 37, 45) On-Board Display (see also fuses 23, 26, 27, 31, 45) |
| Fuse | Rating | Protected Circuit |
|---|---|---|
| 43 | 5A | Anti-theft system (Alpine) (see also fuse 47) Cellular phone (see also fuse 33) Central body electronics (ZKE IV) (see also fuses 14, 33, 35) Convertible roof (see also fuses 7, 24, 27, 42, 49) Interior lights (see also fuse 33) Rear window defogger/blower (see also fuses 6, 23) Roll-over protection (see also fuse 42) Sound system (see also fuses 9, 33, 44) |
| 44 | 15A | Ashtray light (see also fuses 32, 33, 37) Cassette compartment light (see also fuses 32, 33, 37) Charging socket (see also fuses 32, 33, 37) Cigar lighter (see also fuses 32, 33, 37) Glove compartment light (see also fuses 32, 33, 37) Sound system (see also fuses 9, 33, 44) Wiper/washer (see also fuses 3, 36, 37) |
| 45 | 7.5A | Central locking (see also fuses 7, 28, 31, 35) Driveaway protection (EWS II) (see also fuses 28, 29, 31) Instrument cluster (see also fuses 23, 27, 31, 46) Multi-function clock (see also fuses 23, 26, 27, 31, 46) On-Board Computer (see also fuses 11, 12, 23, 26, 27, 31, 33, 37, 46) On-Board Display (see also fuses 23, 27, 31, 46) Starting system (see also fuses 28, 31) |
| 46 | 15A | ABS (see also fuses 10, 21, 27, 38) AST (see also fuses 10, 21, 27, 38) Brake lights Cruise control (see also fuse 28) Electronic transmission control (A4S 310R) (see also fuses 26, 28) Electronic transmission control (A5S 310Z) (see also fuses 26, 28) Engine control DME M5.2 (see also fuses 2, 16, 18, 39) Engine control DME MS 41.1 (see also fuses 16, 18, 39, 50) Instrument cluster (see also fuses 23, 27, 31, 45) Multi-function clock (see also fuses 23, 26, 27, 31, 45) On-Board Computer (see also fuses 11, 12, 23, 26, 27, 31, 33, 37, 45) |
| 47 | 15A | Anti-theft system (see also fuse 43) |
| 48 | 40A | Heating and A/C (IHKA E36) (see also fuses 16, 20, 23, 31, 39, 41) |
| 49 | 20A | Convertible roof (see also fuses 7, 24, 27, 42, 43) |
| 50 | 5A | Engine control DME MS 41.1 (see also fuses 16, 18, 39, 46) |
BMW M3 E36 Relay Positions

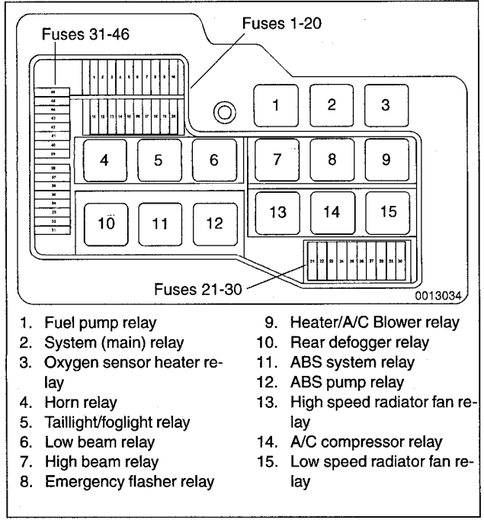

E36 front power distribution box.

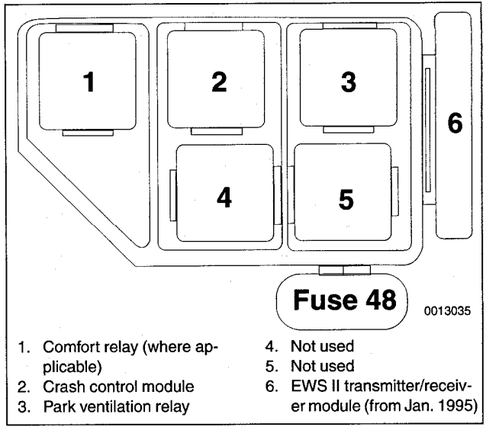

Auxiliary relay panel under left side of dash.
Auxiliary relay panel under left side of dashboard (arrow).
