BMW DME, Bosch Motronic ME7.2 Pinout
1999 to 2004 with ME7.2. It was used in E38, E39, X5 E53.
BMW DME, Bosch Motronic ME7.2 Service Manual

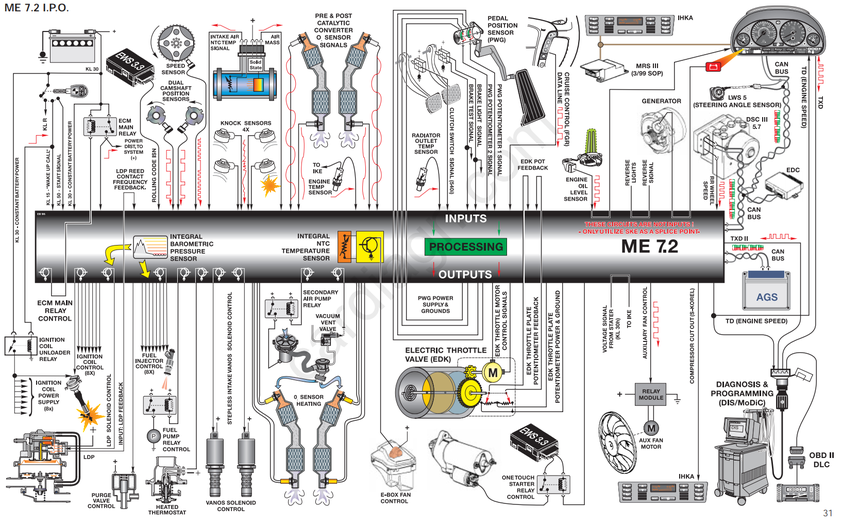

DME-ME 7.2 Engine Management System
Introduction and Application
Motronic ME7.2 is a highly integrated digital engine management system (DME - Digital Motor Electronics) from Bosch that was used in BMW in the late 1990s and early 2000s, primarily on the M62TU series V8 engines.
Key Features of the ME7.2:
Integrated Control Module (Motronic):
- Combines fuel injection and ignition control functions in a single electronic control unit (ECU).
- Ensures precise control of the air-fuel ratio and spark advance for optimal power, efficiency, and minimal emissions.
Electronic Throttle (E-Gas / Drive-by-Wire):
- Unlike older mechanical systems, where the gas pedal was linked to the throttle valve by a cable, the ME7.2 uses electronic control (Drive-by-Wire).
- The DME receives a signal from the pedal position sensor and then electronically controls the throttle valve position via a servomotor. This allows the system to precisely regulate air flow, improving responsiveness and enabling cruise control and stability control.
VANOS (Variable Valve Timing) System:
- The ME7.2 fully controls the VANOS (Variable Valve Timing) system, which was introduced on the M62TU (Technical Update) engines.
- VANOS allows for variable valve timing depending on engine speed and load.
- Result: Increased torque at low rpm and increased power at high rpm, as well as reduced fuel consumption and emissions.
